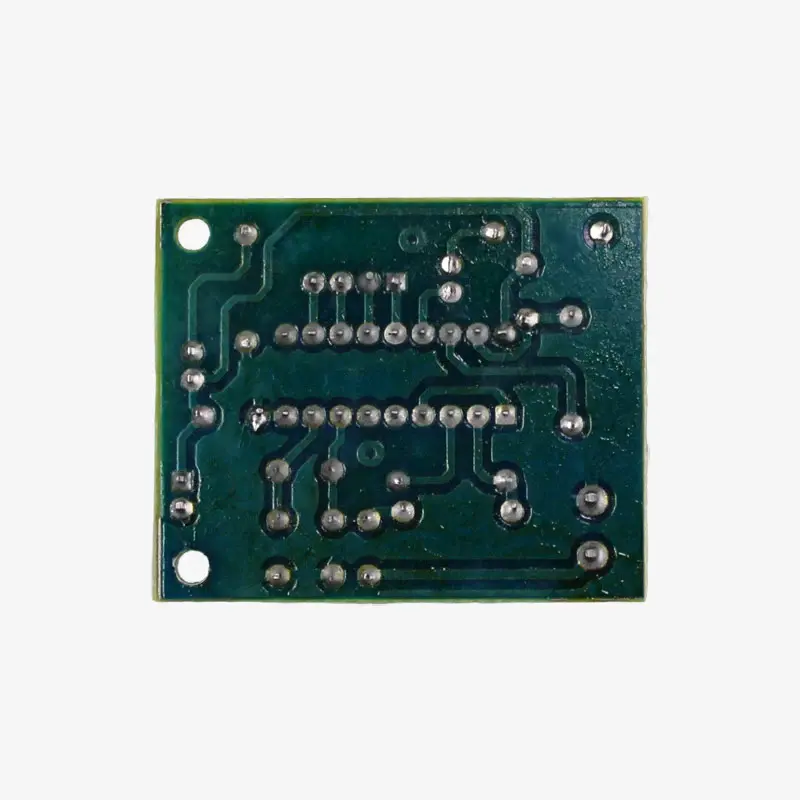

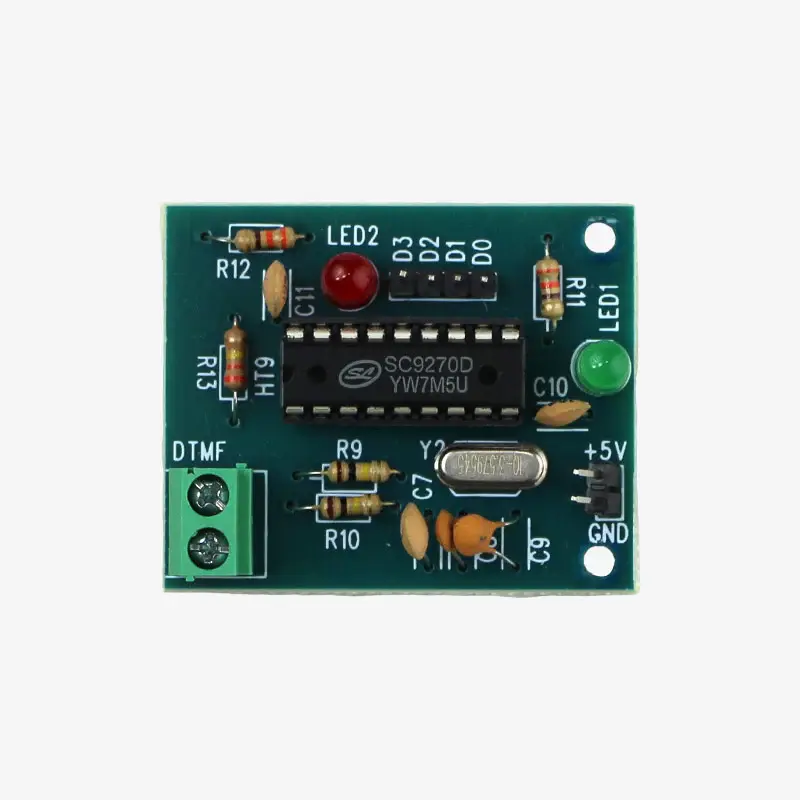

DTMF Decoder Module With Wire (Dual-Tone Multi-Frequency Telephone Audio Decoding Board)
Introduce remote long-distance telephone control and automated audio signaling into your hardware projects with the industrial-grade DTMF Decoder Module With Wire. Designed around high-precision acoustic analysis chipsets, this specialized electronics board intercepts analog dual-tone multi-frequency audio tones—the universal frequencies generated when pressing keys on a standard telephone keypad—and translates them instantly into clean, digital binary code.
Controlling an automated device over vast distances typically requires expensive internet modules, cellular data packages, or complex radio transceivers. This module bypasses those complications by turning any standard mobile phone call or audio jack into a secure, long-range remote control link. It serves as the definitive control core for mobile-operated robotic rovers, home automation override arrays, remote security gates, and automated phone-switching networks.
Key Features
Industrial DTMF Hardware Decoder Core: Outfitted with a high-selectivity decoding chipset that filters out ambient background noise, accurately processing dial tones with zero logic lagging.
Convenient Audio Interface Wire Harness: Bundled with a specialized audio connection cable that plugs directly into standard headphone jacks on smartphones, tablets, or walkie-talkies.
Clean Four-Bit Binary Logic Output: Converts the 16 standard telephone keypad buttons into a simplified, four-bit binary logic format (Pins Q1, Q2, Q3, Q4) that hooks straight into microcontroller inputs.
Onboard Signal Validation LED Indicator: Fitted with a high-contrast diagnostic light-emitting diode that illuminates in real-time to visually confirm whenever a valid DTMF tone combination is actively received.
Low-Power Multi-Voltage Compatibility: Engineered to integrate smoothly with standard digital power structures, drawing minimal current across both 3.3V and 5V direct-current rails.
Seamless Customization Support: Built on an exceptionally flexible manufacturing outline. If your specialized commercial product layout requires unique wire harness configurations, custom board framing dimensions, or pre-installed pin row layouts, we can easily modify the design tracking to fit your exact specifications.
Technical Specifications
Feature | Specification |
Product Component Type | Dual-Tone Multi-Frequency (DTMF) Acoustic Decoder Board |
Input Audio Connection Profile | Dedicated Audio Interface Port (Bundled Wire Assembly Included) |
Logic Control Output Format | 4-Bit Binary Parallel State (Pins Q1, Q2, Q3, Q4) |
Operating Input Voltage Range | DC 5V Standard (Fully operational down to DC 4.5V logic thresholds) |
Status Telemetry Feedback | Onboard Data Valid LED Indicator Light |
Substrate Composite Foundation | Rigid, Low-Flex Flame-Retardant Insulation Plate |
Design Flexibility Feature | Custom dimension layouts, specialized pin configurations, and tailored headers accepted on demand |
Logic Terminal & Pinout Reference Map
The output pin block is cleanly distributed along the border of the substrate to guarantee rapid, error-free integration into your processing core or relay grids:
VCC: Connect directly to your system positive direct-current 5V power supply rail.
GND: Connect directly to the common negative power reference or grounding track of your control grid.
Q1, Q2, Q3, Q4 (Binary Data Out): The digital parallel output pins. These pins register high or low voltage states to mirror the exact binary value of the pressed telephone key (For example, pressing Key 1 outputs a binary code of 0001).
STD (Data Valid Output Pin): Switches to a high logic level instantly whenever a valid tone pair is actively recognized and decoded, letting your microcontroller know it is time to read the Q pins.
Common Applications
Mobile-Operated Robotic Rovers: Connect an old phone to the robotic chassis via the audio wire harness to steer your vehicle from miles away by simply pressing keys on a secondary phone keypad during a live voice call.
Cellular Smart Home Overrides: Build a secure, internet-free home automation hub that lets you dial a dedicated receiver line and toggle 1-channel, 2-channel, or 4-channel industrial relay shields from anywhere in the country.
Remote Automated Security Gates: Deploy at distant farm boundaries or security checkpoints to allow trusted operators to trigger automated motor gates via telephone dial commands.
Educational Vocational Innovation Labs: An exceptional instructional accessory tool for introducing advanced electronics students to telecommunication protocols, acoustic frequency multiplexing, and binary logic translation.
Package Includes:
1 x DTMF Decoder Module
