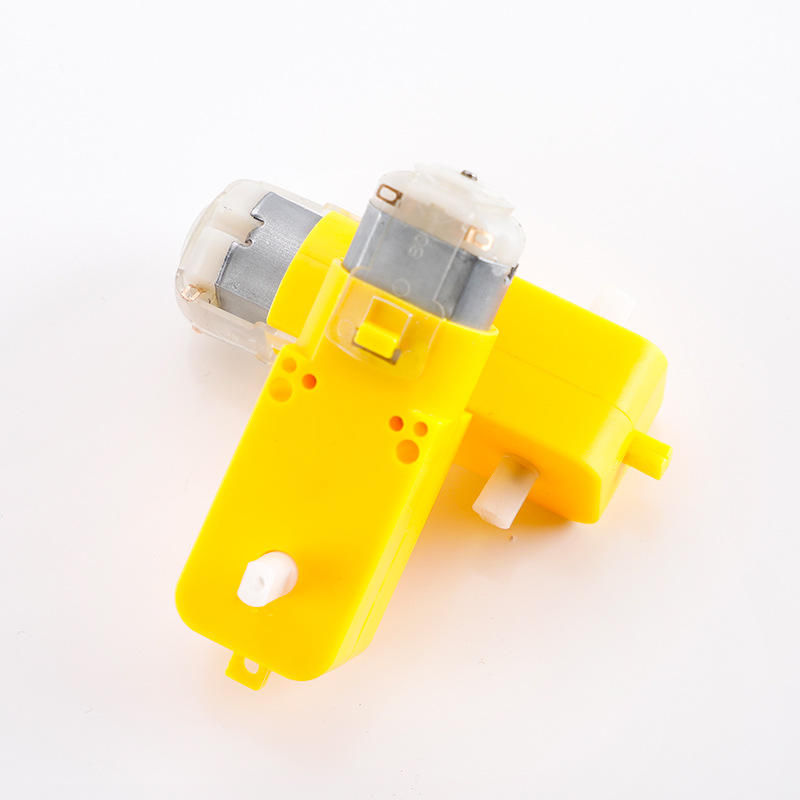

Dual-Shaft DC Geared Motor 100 RPM (Heavy-Duty Industrial Grade BO Motor)

Introduce rock-solid mechanical traction, high twisting force, and reliable directional movement into your mobile robotic platforms with the premium Dual-Shaft DC Geared Motor 100 RPM. Commonly classified as a Battery Operated (BO) motor, this high-performance unit combines a smooth direct-current motor with a rugged, factory-integrated internal reduction gear train to drop speed down to a highly controllable 100 revolutions per minute while massively boosting output torque.

Standard hobby motors spin far too fast and lack the torque needed to push weighted chassis frames, causing stalls and sluggish acceleration. Featuring a unique dual-sided output shaft arrangement, this motor allows you to drive a primary wheel from one side while simultaneously tracking shaft rotation with an optical encoder disk on the opposite side. It serves as the definitive powertrain choice for autonomous smart cars, obstacle-avoidance rovers, line-following competition robots, and automated conveyor testing tracks.

Key Features

• Rugged Dual-Shaft Drive Output: Outfitted with an extended drive shaft protruding from both sides of the gearbox shell, allowing you to mount wheels, pulley disks, or positioning encoders symmetrically.

• High-Torque Reduction Gear Train: Engineered with internal, impact-resistant structural gears that multiply raw motor rotation into rich rotational twisting force to handle rough terrain easily.

• Optimized 100 RPM Speed Curve: Tuned perfectly to deliver a stable, balanced rate of 100 revolutions per minute, providing the ideal ratio of torque to velocity for indoor mobile robot navigation.

• Tough Lightweight Plastic Enclosure: Protected by a high-strength, lightweight polymer shell that safeguards the internal gear teeth from dust, loose wires, and structural impact shifts.

• Low Current Operating Profile: Draws a very conservative current load under typical operations, making it fully compatible with common transistor switches, H-bridge motor drivers, and multi-channel relay shields.

• Seamless Customization Support: Built around an exceptionally versatile manufacturing outline. If your custom commercial automation product requires specialized wire leads, flattened shaft dimensions, or unique gear reduction ratios, we can easily customize the physical configuration to match your exact blueprint specifications.

Technical Specifications

Hardware Operation & Velocity Control

To implement full bidirectional movement and proportional speed tracking across your robotic vehicles, pair this BO motor with standard electronic power drivers:

• Bidirectional Trajectory Switching: Swapping the power wire leads (reversing positive and negative paths) reverses the internal magnetic fields, smoothly switching the output shaft rotation between clockwise and counter-clockwise directions.

• Proportional Speed Adjustments: To control the travel velocity of your robot wheels, route the motor power through a standard H-Bridge motor driver or switching transistor and vary the input voltage using variable Pulse Width Modulation (PWM) duty-cycle adjustments.

Common Applications

• Line-Following Robotic Competitions: Mount symmetrically onto a two-wheel or four-wheel drive chassis loop to achieve highly predictable, completely tracking adjustments along complex path grids.

• Obstacle-Avoidance Smart Cars: Pair with front-facing ultrasonic sensor mounts to create responsive mobile rovers that back up, pivot, and steer away from walls smoothly.

• Automated Product Conveyor Models: Act as the primary driving wheel or pulley mechanism to move miniature assembly tracks, sorter arms, and localized delivery components.

• Educational Academic Vocational Labs: An essential, highly durable instructional hardware component for introducing electronics students to rotational mechanics, gear ratio multipliers, and H-bridge directional logic.

Package Includes:

• 1 x Dual-Shaft DC Geared Motor 100 RPM (BO Motor Standard Profile)
