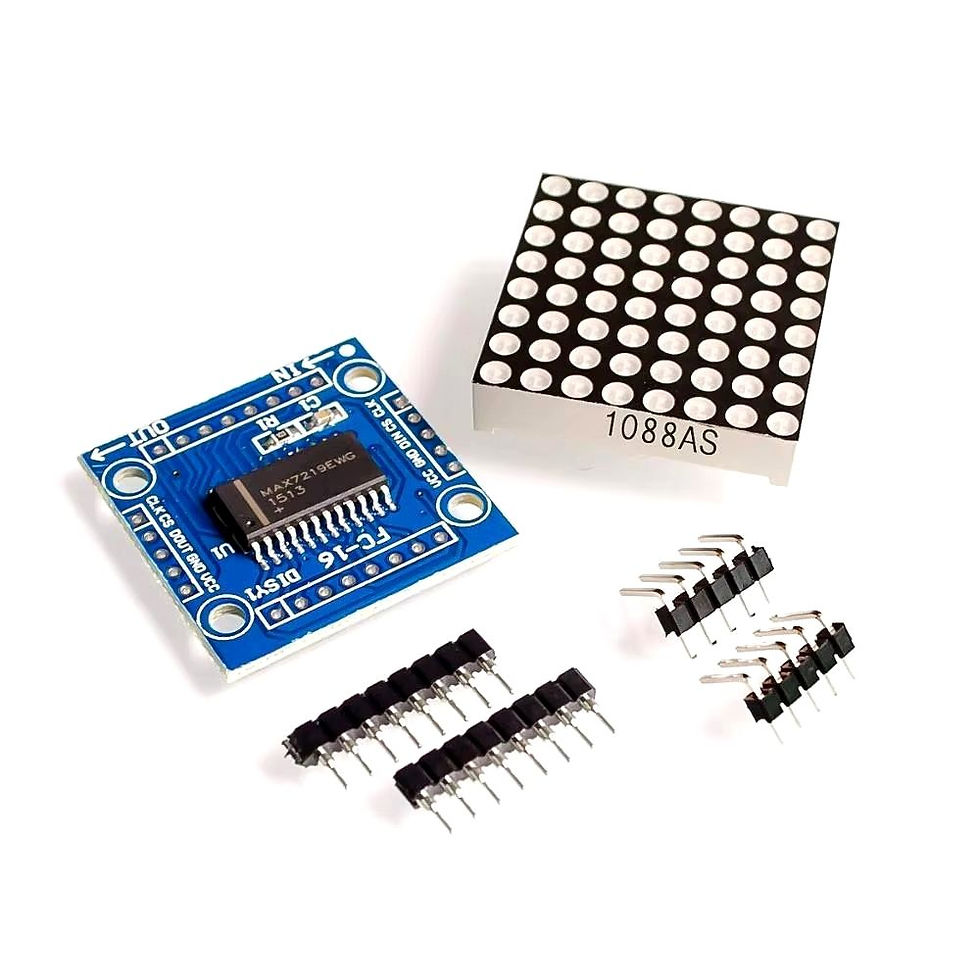

MAX7219 8x8 Dot Matrix Display Module (Cascadable LED Pixel Panel Interface)
Introduce vibrant, programmable visual signaling, scrolling text banners, and custom pixel animations into your automated electronic systems with the industrial-grade MAX7219 8x8 Dot Matrix Display Module. Driven by the highly efficient MAX7219 hardware matrix driver chip, this compact panel clusters 64 bright red light-emitting diodes into a tight 8-row by 8-column grid, giving you complete digital control over every individual pixel.
Wiring a raw 64-LED matrix manually requires a staggering 16 discrete control lines, complex dynamic multiplexing code routines, and a massive bundle of resistors that wastes processor pins and clutters your board layout. This module cuts that overhead completely by handling all multiplexing, current regulation, and refresh tracking internally on the substrate. It serves as the definitive visual indicator choice for digital clocks, automated industrial status scoreboards, ticker displays, and interactive microcontroller text feeds.
Key Features
Integrated MAX7219 Driver Chipset: Features an onboard hardware controller that tracks the state of all 64 pixel elements automatically, eliminating the need for continuous software scanning routines.
Streamlined Three-Wire SPI Serial Link: Communicates over a highly efficient serial peripheral interface requiring only three digital logic data lines (Data, Clock, and Chip Select) from your microcontroller.
Fully Cascadable Daisy-Chain Layout: Outfitted with dedicated input pins on one side and matching output pins on the other, allowing you to chain multiple matrix panels together into a long scrolling banner without using any extra processor pins.
Uniform Brightness Control: Engineered with internal analog and digital current-limiting parameters to ensure every single LED pixel illuminates with identical brightness and zero visual flickering.
Four Rigid Corner Structural Openings: Machined with four pre-drilled mechanical corner holes that allow the panel layout to be bolted securely to front bezels, project enclosures, or test chassis panels.
Seamless Customization Support: Built on an exceptionally flexible manufacturing schematic. If your commercial machinery build requires specialized board layouts, alternative LED lens colors (such as Blue, Green, or Amber), or right-angle pin arrays, we can easily customize the physical configuration to match your exact design specifications.
Technical Specifications
Feature | Specification |
Display Matrix Grid Layout | 8 Rows x 8 Columns (64 Independent LED Pixels Total) |
Integrated Driver Architecture | MAX7219 Hardware Serial Multiplexing Matrix Core |
Nominal Operating Voltage | DC 5V Standard (Optimized for mainstream digital power grids) |
Display Lens Output Color | High-Visibility Bright Red |
Serial Communication Input | 3-Wire SPI Protocol (Data In, Clock, Chip Select) |
Chassis Dimensional Footprint | Compact Low-Clearance Square Profile (Approx. 32 mm x 32 mm) |
Design Flexibility Feature | Custom board dimensions, alternative LED colors, and unique headers accepted on demand |
Interface Pinout Connection Blueprint
The module features a highly logical, dual-sided terminal interface. Use the input side to talk to your processor and the output side to daisy-chain additional display grids:
Input Side Conductor Bank (Connects to Microcontroller):
VCC: Connect to your system positive DC 5V power supply rail.
GND: Connect to the common system reference grounding or negative power return track.
DIN (Data Input): Serial data line. Connect to the MOSI or digital output pin of your processor.
CS (Chip Select / Load): Active-low latch control line. Used to clock data packets into the active matrix buffer.
CLK (Serial Clock Input): Clock line. Synchronizes the data bits shifted into the driver register.
Output Side Conductor Bank (Connects to Next Cascaded Module Input):
VCC / GND: Routes shared power forward to the next display tile.
DOUT (Data Output): Pipes the serial data overflow stream straight into the DIN pin of the next matrix board in the chain.
Common Applications
Scrolling Text Message Banners: Chain 4 or more modules together to create alphanumeric ticker tapes that display live sensor data, notifications, and alert phrases.
Industrial Status Indicators: Wire directly into centralized automation control blocks to display diagnostic fault numbers, active relay channel flags, or direction arrows.
Smart Digital Dashboard Clocks: Form the numeric face plates for custom automated timekeeping modules, indoor temperature checkers, and custom gym training counters.
Educational Academic Vocational Labs: An exceptional, highly engaging teaching asset for introducing coding students to SPI bus multiplexing, binary bitmap array mapping, and visual human-machine interfacing.
Package Includes:
1 x MAX7219 8x8 Dot Matrix Display Module
1 x 5-Pin Female-to-Female Dupont Jumper Assembly Wire Loom
