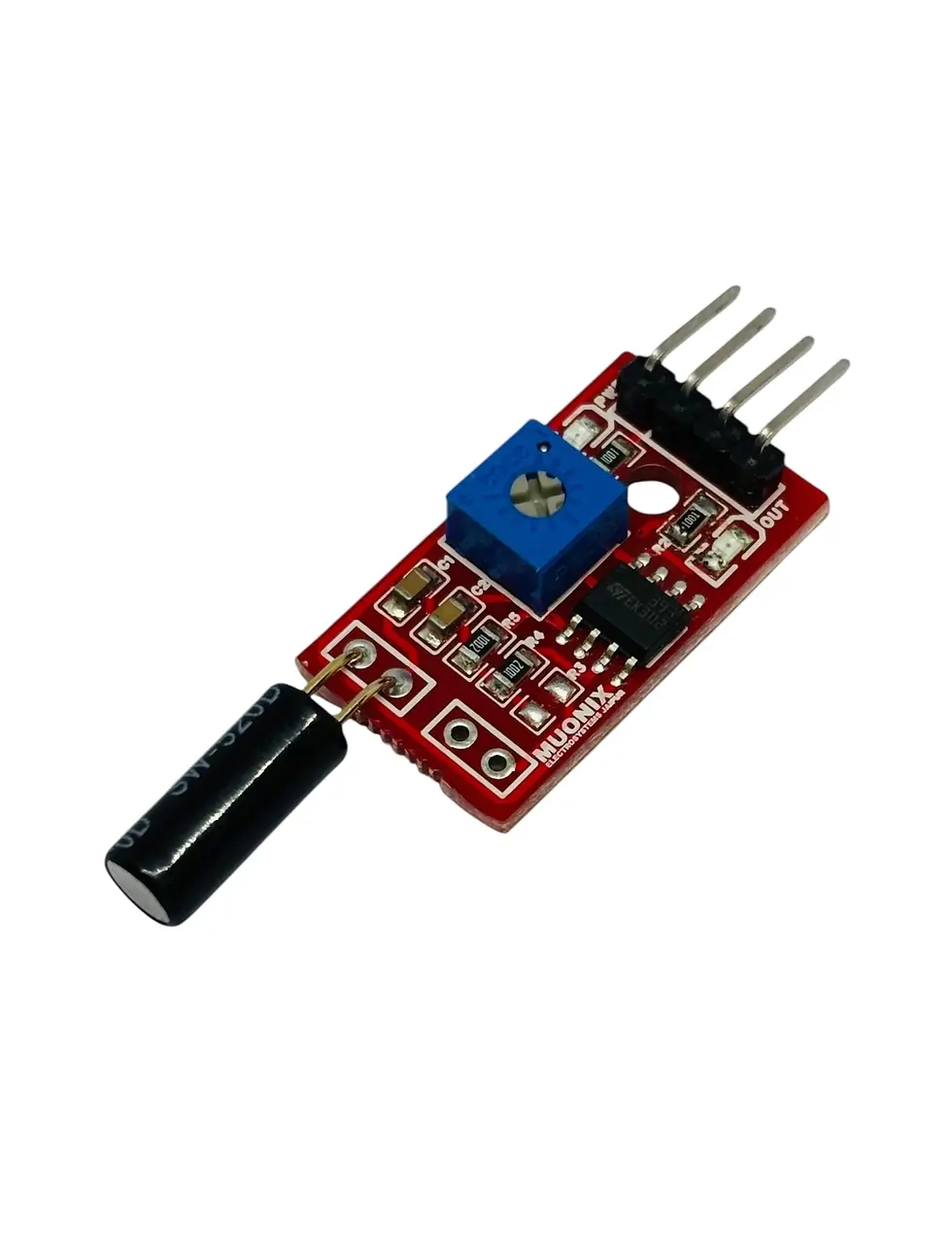

Muonix Tilt Switch Sensor Module (Standalone High-Sensitivity Spatial Orientation Evaluation Board)

Introduce smart positional awareness, real-time tilt tracking, and automated rollover protection into your electronic layouts with the premium Muonix Tilt Switch Sensor Module. This product listing is for the standalone sensor module board. It serves as the definitive hardware solution for developers, industrial suppliers, and system integrators who already possess custom wiring harnesses or interface cables and simply require a fresh, highly responsive orientation tracking core to drop directly into their hardware infrastructure.

Leaving automated mobile equipment, industrial panels, or security systems blind to spatial orientation risks catastrophic structural damage during tips, flips, or unauthorized physical tampering. This standalone sensor module resolves those mechanical vulnerabilities by converting raw positional changes into accessible voltage outputs. It serves as the definitive sensory choice for autonomous balancing rovers, anti-theft equipment alarms, smart safety heaters that auto-shutoff when tipped, and multi-axis mechanical position monitors.

Key Features

• Standalone Module Focus: Designed explicitly as a standalone component, allowing you to easily replace degraded modules or scale existing sensor arrays without wasting money on unneeded duplicate wire leads.

• Dual-Output Signal Interface: Features both an Analog output track for exact tracking of low-level vibration patterns and a Digital output track for straightforward threshold-based orientation switching.

• Onboard Sensitivity Adjuster Dial: Outfitted with a top-adjusting trimmer potentiometer that lets you calibrate the exact inclination threshold required to flip the digital output state.

• Highly Reliable Metallic Ball Core Element: Outfitted with a premium, tightly sealed non-mercury ball-bearing cavity that rolls smoothly along internal conductor paths when tilted past a specific angular plane.

• Integrated LED Status Array: Designed with two onboard light-emitting diodes: one to indicate the module is receiving stable system power, and another to show when the orientation has crossed your digital switching limit.

• High-Performance Comparator Chipset: Driven by a highly reliable internal differential comparator circuit that stabilizes signal outputs and eliminates erratic data jitter during fast structural movements.

• Standard Multi-Pin Header Interface: Features a standard universal pin layout that accommodates prototype breadboards, hookup jumpers, and microcontroller development shields seamlessly.

• Seamless Customization Support: Developed around an exceptionally versatile manufacturing template. If your specialized commercial product kit or industrial automation console requires extended sensor leads, unique angled element positioning, or custom board footprints, we can easily modify the structural tracking and component layout to match your exact blueprint specifications.

Technical Specifications

Hardware Terminal & Interface Wire Mapping

The module layout organizes all power and data channels into a clean header array to guarantee fast, completely error-free wiring links into your controller core:

• VCC (Positive Power Input): Connect to a stable positive power rail from your controller (Supports DC 3.3V to 5V inputs).

• GND (Common Ground Reference): Connect straight to the common reference grounding track or negative power return line of your system grid.

• DO (Digital Output Pin): The threshold logic line. This pin outputs a digital Low signal when the module is sitting flat in its horizontal plane, and instantly snaps to a digital High signal the moment it tilts past your customized angular limit.

• AO (Analog Output Pin): The micro-vibration tracking path. Outputs a continuous variable voltage curve. As the sensor undergoes motion or rapid angular changes, the internal rolling element bounces across contacts, generating fluctuating data waves useful for tracking ongoing movement patterns.

Foundational Operational & Calibration Steps

To ensure absolute mechanical tracking and prevent false-trigger switching loops across your automation grids, follow these core installation rules:

• Digital Threshold Calibration: To set an automatic tilt-activation safety limit, physically tilt the module to your target cutoff angle. Rotate the onboard trimmer screw until the digital output indicator light just flips on. This digital line can now be routed straight into an external industrial relay module to trigger emergency safety stops or alerts instantly.

• Vibration Dampening Isolation: In high-vibration environments, such as near large motors or heavy industrial wheels, mount the module onto a small rubber or foam isolating pad. Intense, continuous mechanical shaking can cause the internal ball to bounce erratically, creating false tilt signals on the digital pin.

• System Integration Versatility: The raw digital state can be read by any hardware logic port, allowing your software loops to run debouncing routines that require the tilt to be maintained for several seconds before executing system shutdown sequences.

Common Applications

• Automated Safety Appliance Cutoffs: Pair with a 1-channel, 2-channel, or 4-channel industrial grade relay module to automatically cut power to custom heating arrays or localized industrial ovens the moment the equipment tilts or falls over.

• Robotic Rollover & Recovery Triggers: Deploy inside autonomous wheeled or tracked chassis units to detect dangerous rollover states, instantly signaling the core processing unit to halt drive tracks and execute recovery arm movements.

• Anti-Tamper Asset Protection: Secure inside equipment storage boxes, control enclosures, or valuable test consoles to instantly sound a loud warning siren if the property is tilted or moved by unauthorized personnel.

• Educational Academic Innovation Laboratories: An exceptional instructional hardware asset for introducing vocational students to gravity-based switching mechanics, differential signal filtering, and industrial safety interlock designs.

Package Includes:

• 1 x Muonix Tilt Switch Sensor Module
