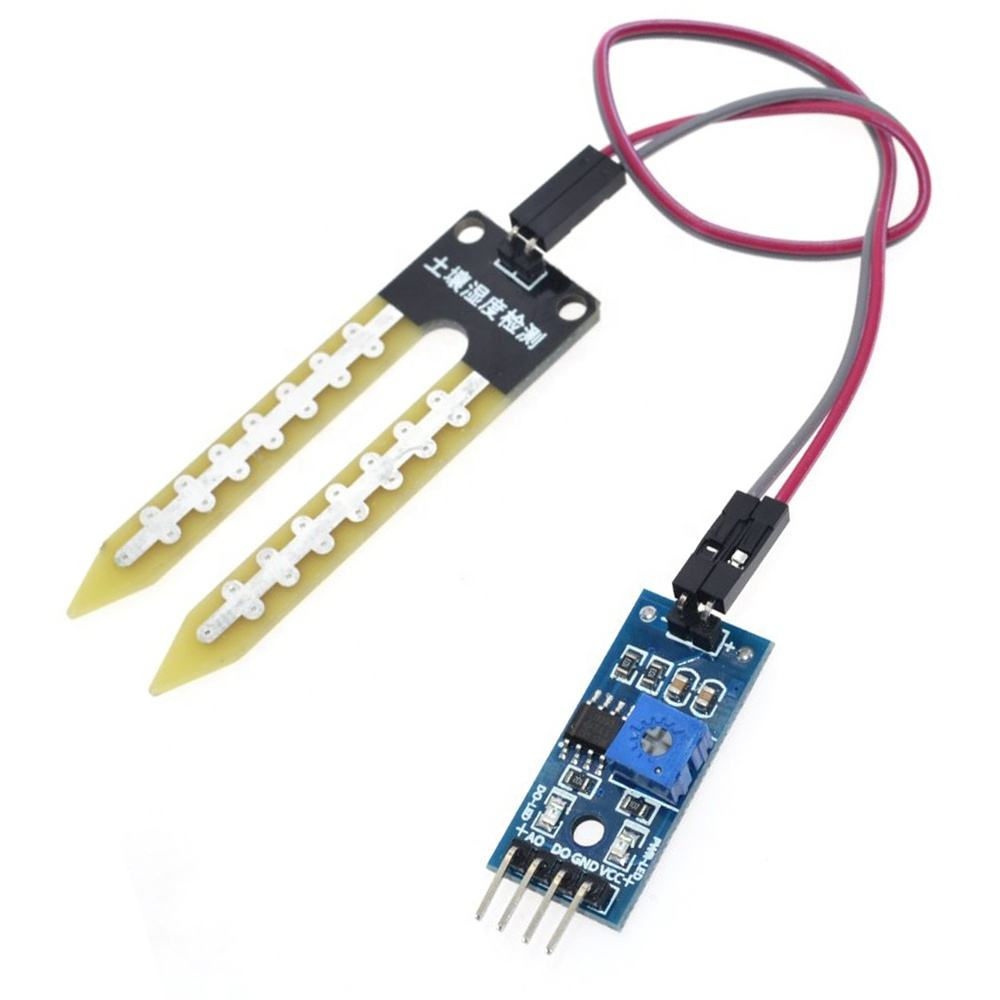

Soil Moisture Detection Sensor Module (High-Sensitivity Agricultural Automation Moisture Sensor)

Introduce smart environmental awareness, real-time substrate tracking, and automated irrigation thresholds into your electronic layouts with the premium Soil Moisture Detection Sensor Module. Composed of a heavy-duty immersion-plated tracking probe paired with a specialized electronic comparator processing board, this module detects the real-time volumetric water content inside soil and growing mediums instantly.

Manually guessing when to irrigate crops or relying on simple timers often leads to water logging, root rot, or severe underwatering that destroys valuable botanical experiments. This sensor resolves those agricultural management blind spots by converting the physical moisture density of the surrounding earth into clean digital and analog logic signals. It serves as the definitive sensory choice for automated plant watering systems, smart greenhouse arrays, IoT agricultural data loggers, and automated soil research prototypes.

Key Features

• Dual-Output Logic Framework: Features both an Analog output track for precise percentage-based moisture mapping and a Digital output track for straightforward threshold-based on/off switching.

• Onboard Sensitivity Adjuster Dial: Outfitted with a top-adjusting blue trimmer potentiometer that lets you calibrate the exact soil dryness level required to trigger the digital output pin.

• Corrosion-Resistant Probe Plating: Built with a rugged, open-fork probe geometry lined with a thick metallic plating to resist rapid oxidation when buried inside damp, nutrient-dense environments.

• Integrated LED Status Array: Designed with two onboard light-emitting diodes: one to indicate the module is receiving stable system power, and another to show when the soil dryness has crossed your digital threshold.

• High-Performance Comparator Core: Driven by a highly reliable internal differential comparator chip that stabilizes signal outputs and eliminates erratic data jitter.

• Seamless Customization Support: Developed around an exceptionally versatile manufacturing template. If your specialized commercial agricultural kit or industrial field deployment requires extended probe lengths, waterproof wiring harnesses, or custom board footprints, we can easily modify the structural tracking to match your exact blueprint specifications.

Technical Specifications

Hardware Terminal & Interface Wire Mapping

The module split layout isolates the soil-facing probe from the sensitive processing electronics, utilizing standard header pins for quick, error-free wiring links into your controller core:

Processing Board to Microcontroller Interface:

• VCC (Positive Power Input): Connect to a stable positive power rail from your controller (Supports DC 3.3V to 5V inputs).

• GND (Common Ground): Connect straight to the common reference grounding track or negative power return line of your system grid.

• DO (Digital Output Pin): Outputs a digital Low signal when soil moisture is plentiful (above the threshold setting) and switches to a digital High signal when the soil dries out past your customized limit.

• AO (Analog Output Pin): Outputs a continuous variable voltage curve. As the soil absorbs water, the electrical resistance drops, causing the analog voltage value to scale downward, providing fine-grained percentage metrics.

Processing Board to Probe Interface:

• Dual-Pin Block: Connect the two jumper wires from the fork probe straight into these two terminal pins. This path handles the low-voltage sensing loop across the earth substrate.

Foundational Operational & Calibration Steps

To ensure accurate soil readings and prevent premature component wear across your automation grids, follow these core installation rules:

• Digital Threshold Calibration: To set an automatic watering point, insert the probe into soil that has reached your target dry limit. Rotate the onboard trimmer screw until the digital status indicator light just flips on. This digital pin can now be routed straight into an external industrial relay module to trigger a water pump instantly when soil drops below this limit.

• Resistive Degradation Mitigation: Because this sensor operates on a resistive tracking framework, passing direct-current power through the probe continuously causes slow galvanic breakdown of the metal plating over time. To massively extend the active lifetime of your probe, power the VCC line through a digital output pin on your microcontroller, toggling the sensor on exclusively for a brief millisecond window whenever a reading is needed, then shutting it down between measurement intervals.

Common Applications

• Automated Smart Drip Irrigation: Pair with a 1-channel or 2-channel industrial grade relay module and a mini submersible pump to construct an automated home plant-watering rig that runs completely unattended.

• IoT Weather & Agricultural Stations: Deploy across farm fields wrapped inside wireless sensor nodes to upload real-time soil moisture percentage matrices to cloud logging analytics.

• Automated Greenhouse Canopy Monitors: Group multiple sensors along different soil zones to track localized moisture variations caused by overhead lighting structures or ventilation paths.

• Educational Academic Vocational Labs: An exceptional instructional hardware asset for introducing students to automated sensor thresholds, variable analog-to-digital conversions, and environmental programming logic.

Package Includes:

• 1 x Moisture Detection Plated Fork Probe

• 1 x Voltage Comparator Processing Board

• 1 x Multi-Conductor High-Flex Female Jumper Wire Harness
