Project Overview

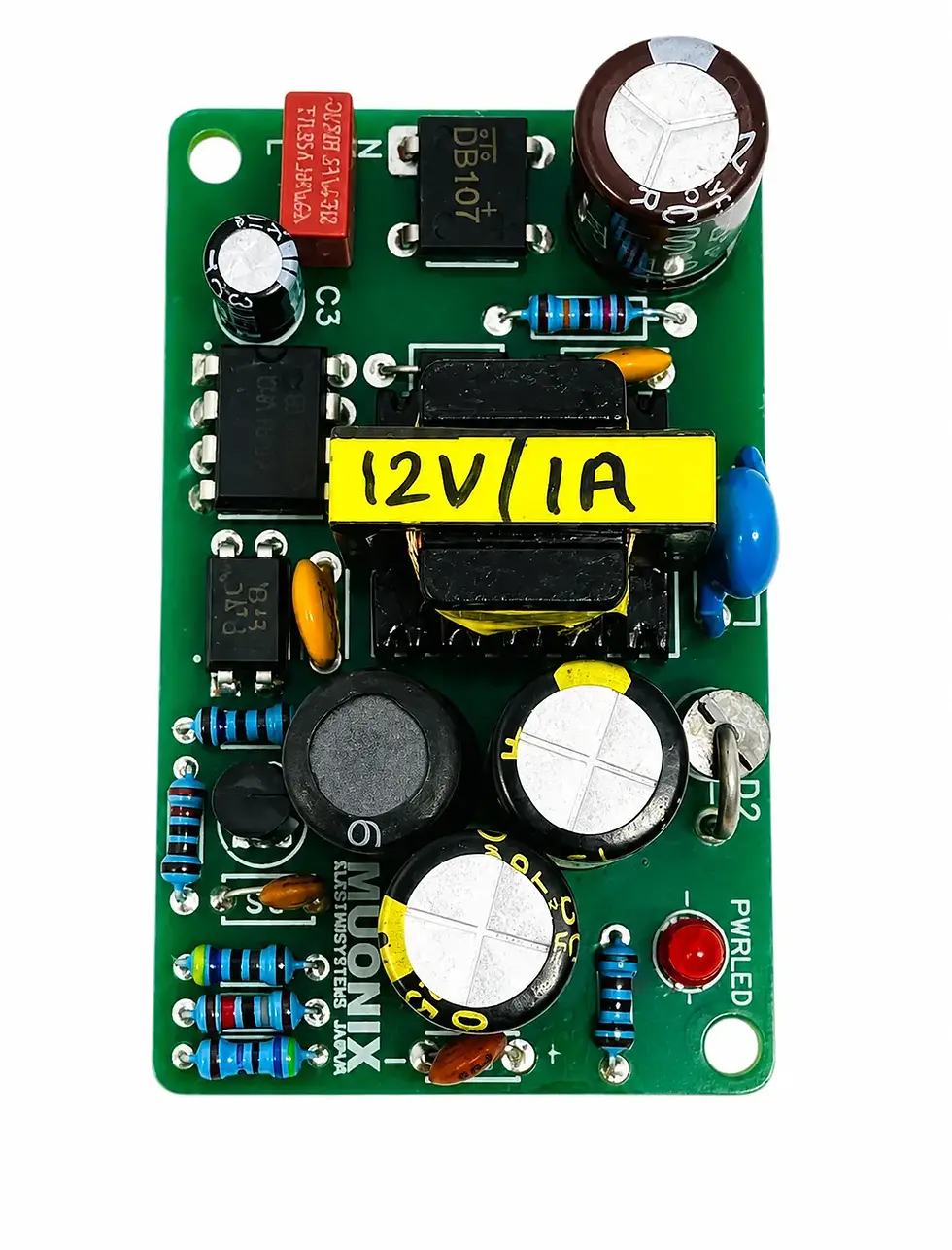

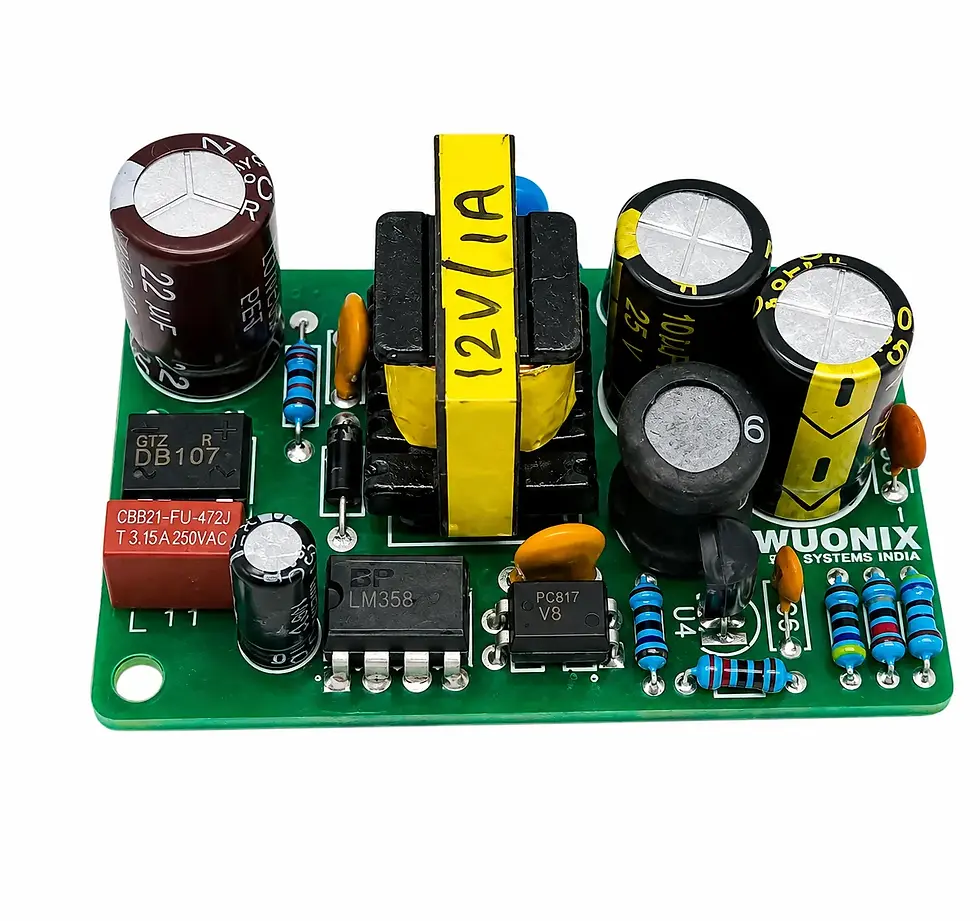

The 12V 1A Switch Mode Power Supply (SMPS) is a compact, high-efficiency AC-to-DC power converter designed to provide a regulated 12V DC output at up to 1A from a universal AC input. Based on an isolated flyback topology, the power supply ensures excellent electrical isolation, stable output regulation, and reliable long-term performance. It features built-in protection mechanisms to safeguard both the power supply and connected devices, making it suitable for a wide range of consumer, industrial, and embedded applications.
Key Features
Universal AC input: 85–265V AC, 50/60Hz
Stable 12V DC / 1A regulated output
Maximum output power of 12W
Isolated flyback converter design
High efficiency with low standby power consumption
Low output ripple and noise
Short-circuit protection (SCP)
Over-current protection (OCP)
Over-voltage protection (OVP)
Compact and lightweight design
Reliable continuous operation
Technical Specifications
Parameter | Specification |
Input Voltage | 85–265V AC, 50/60Hz |
Output Voltage | 12V DC ±5% |
Output Current | 1A (Max) |
Output Power | 12W |
Topology | Isolated Flyback SMPS |
Efficiency | Up to 85% |
Protection | OCP, OVP, SCP |
Operating Temperature | -20°C to +60°C |
Cooling | Natural Air Cooling |
PCB Type | FR-4 Double Layer |
Applications
CCTV Cameras
LED Strip Lights and LED Controllers
Wi-Fi Routers and Networking Equipment
Embedded Systems and Development Boards
Industrial Control Circuits
Home Automation Systems
Security and Alarm Systems
Audio and Multimedia Devices
Small DC Motors and Actuators
Consumer Electronic Devices
Package Includes
1 × 12V 1A SMPS Power Supply PCB
1 × Fully Assembled Electronic Circuit
