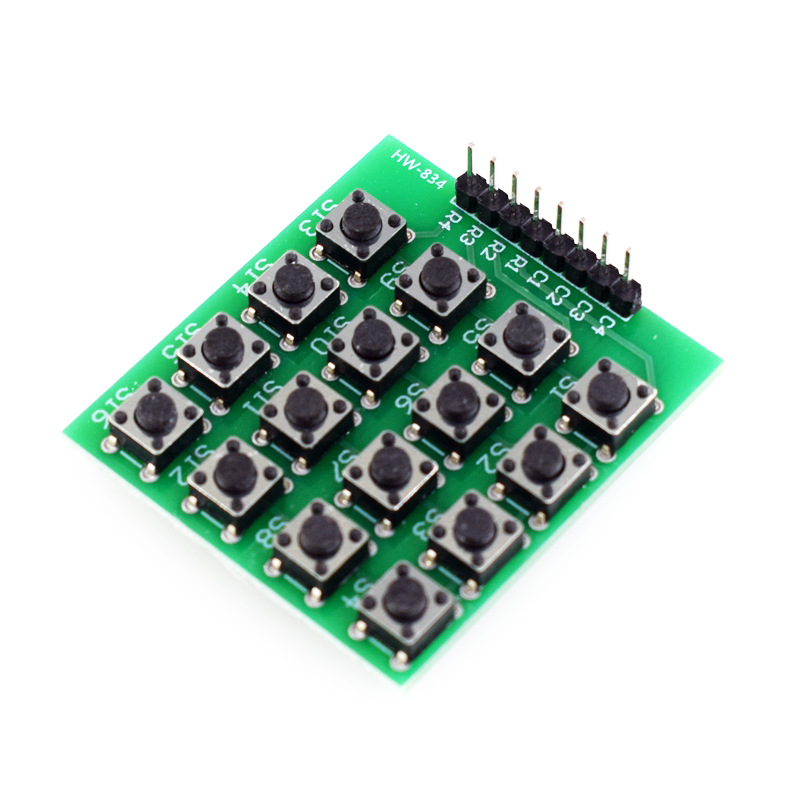

4x4 Matrix 16 Keypad Keyboard Module (16-Button MCU Microcontroller Interface)
Introduce a highly versatile, full alphanumeric data entry panel into your computational projects with the industrial-grade 4x4 Matrix 16 Keypad Keyboard Module. Engineered on a rigid, high-insulation circuit board substrate, this 16-button mechanical tactile matrix provides a structured, responsive interface that lets users type hexadecimal strings, input secure system passwords, adjust configuration thresholds, and navigate advanced software scripts seamlessly.
Standard separate push buttons require individual wiring lines, pulling massive amounts of input-output pins from your processor and cluttering the workspace. This matrix array resolves pin-scarcity constraints by multiplexing 16 independent tactile switches down into a simplified row-and-column layout utilizing only 8 digital control pins. It serves as the definitive control pad for electronic security deadbolts, automated laboratory instrumentation, point-of-sale terminal modules, and complex microcontroller processing units.
Key Features
Full 16-Button Command Grid: Structured in a comprehensive 4-row by 4-column matrix featuring 16 high-density tactile micro-switches to handle numeric, character, and custom function mappings.
Crisp Tactile Snap Feedback: Each individual key switch is built with an internal mechanical dome that delivers a crisp, audible snapping click upon actuation, ensuring operators register every single keystroke accurately.
Space-Saving Multiplexed Circuit Architecture: Interconnects all 16 keys across just 8 interface pins (4 Rows and 4 Columns), saving valuable processor inputs on your central host microcontrollers.
Rigid Dual-Layer Substrate Frame: Machined on a robust, flame-retardant composite circuit plate that resists flexing and structural twisting under heavy, repetitive finger pressing forces.
Standard 2.54 mm Right-Angle Row Headers: Terminated with a pre-installed, standard-spaced 8-pin male header row that allows clean, secure hookups using standard Dupont jumper wire sets.
Seamless Customization Support: Developed around an adaptable manufacturing schematic. If your specific engineering layout requires straight row pins, alternative module footprint dimensions, or customized keycaps, we can easily modify the structural design configuration to match your exact project specifications.
Technical Specifications
Feature | Specification |
Matrix Interface Configuration | 4 Rows x 4 Columns (16 Independent Tactile Key Switches) |
Maximum Circuit Operating Voltage | DC 12V Nominal Peak (Fully rated and optimized for DC 5V and DC 3.3V logic blocks) |
Maximum Contact Current Rating | 50 mA continuous loop switching limit |
Insulation Baseline Resistance | 100 Megohms minimum under standard operating environments |
Connector Header Interface | 8-Pin Male Header Row (Standard 2.54 mm right-angle pitch) |
Switch Contact Bounce Cycle | Less than or equal to 5 milliseconds transition threshold |
Design Flexibility Feature | Custom dimension layouts, unique pin header placements, and bespoke caps accepted on demand |
Hardware Matrix Pinout Mapping
This module groups its 16 tactile keys into a multiplexed wire layout, routed across the 8-pin connector block from left to right as follows:
Pins 1 to 4 (Rows R1, R2, R3, R4): Manage the horizontal tracking loops across the keyboard module.
Pins 5 to 8 (Columns C1, C2, C3, C4): Manage the vertical tracking loops across the keyboard module.
To log a keystroke, your microcontroller software drives the row lines sequentially low and scans the column lines to read exactly which intersection contact has closed, providing an instant, error-free coordinate trigger.
Common Applications
Hexadecimal Data Entry Terminals: Build standalone programming interfaces, calculator modules, and custom debug menus to feed raw data matrices straight into active central processors.
Secure Electronic Smart Locks: Create rugged exterior password security pads to process multi-digit authorization codes and trigger automated solenoid door strikes.
Industrial Machinery Parameter Modules: Serve as a multi-key control station to adjust operating timers, toggle active channels, or cycle menus on terminal screens.
Multi-Channel Relay Manual Overrides: Wire directly into centralized logic grids to act as dedicated manual command triggers for advanced 1-channel, 2-channel, and 4-channel industrial relay shields.
Package Includes:
1 x 4x4 Matrix 16 Keypad Keyboard Module (Tactile Button Array Layout)
