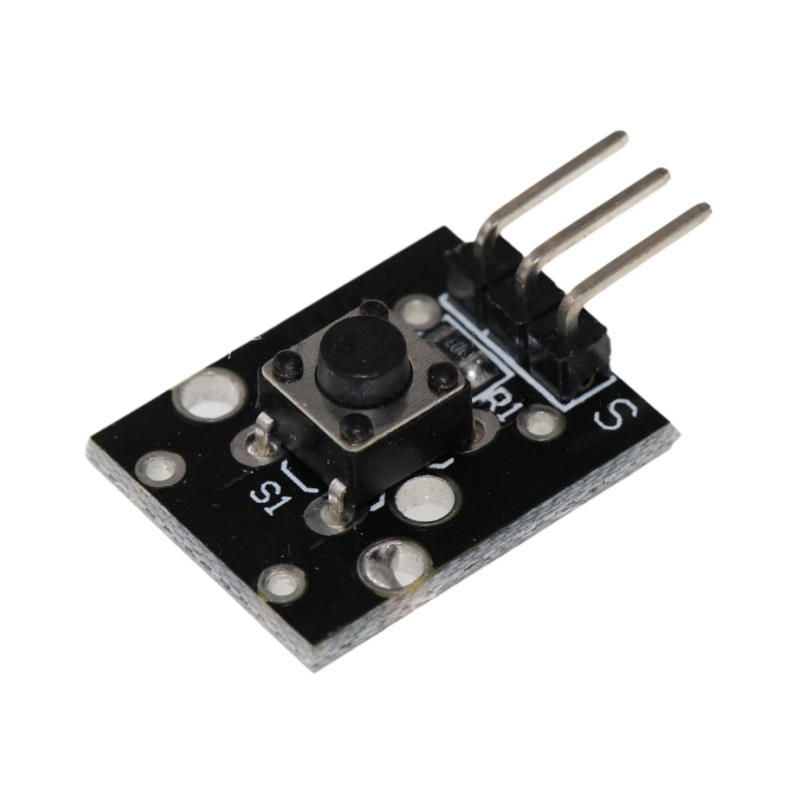

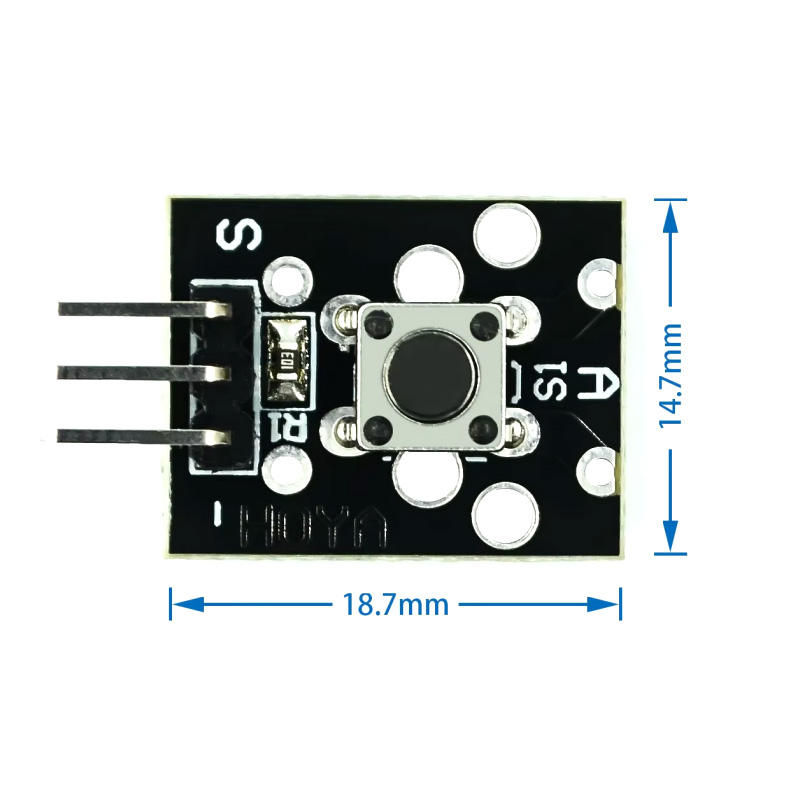

Momentary Tactile Push Button Module DC 5V Switch (Modular Micro-Switch Breadboard Interface)

Introduce clean, reliable user input into your digital control systems with this premium Momentary Tactile Push Button Module DC 5V Switch. Built onto a high-insulation electronic substrate, this compact module adapts a durable mechanical micro-switch into a plug-and-play input node that effortlessly pipes digital state changes straight into your processing logic.

Standard raw tactile switches have short, brittle legs that bend easily, making them unstable on prototyping breadboards and difficult to mount inside custom project panels. This module solves that by anchoring a heavy-duty tactile switch onto a reinforced circuit plate complete with dedicated power conditioning lanes. It serves as the definitive input component for microcontroller menus, custom robotics triggers, automated testing benches, and interactive multi-channel relay control panels.

Key Features

• Crisp Mechanical Click Feedback: Equipped with a high-durability internal dome contact that delivers a sharp, tactile snapping sensation and audible click upon every actuation, confirming successful user input.

• True Momentary Action Cycle: Operates on a pure temporary contact architecture—the circuit closes and registers a state change only while the button is physically held down, resetting instantly upon release.

• Optimized DC 5V Power Logic: Fully tuned to operate flawlessly on standard 5V direct-current logic rails, drawing negligible current while maintaining high signal-to-noise margins.

• Stable Built-In Resistor Network: Integrated with an onboard resistor configuration that actively suppresses ambient radio frequency interference, preventing false-trigger errors on your microcontrollers.

• Three-Pin Modular Header Matrix: Features a streamlined, clearly labeled three-pin interface (Signal, Power, Ground) that makes connection simple using standard female-to-female jumper wires.

• Seamless Customization Support: Built on an incredibly flexible modular design layout. If your engineering workspace requires specialized module tracking dimensions, altered pin row orientations, or specific key-cap colors, we can easily customize the structural configuration to match your exact blueprint specifications.

Technical Specifications

Pinout Connection Blueprint

The three-pin terminal array is logically positioned across the substrate base to prevent cross-wiring mistakes during fast assembly cycles:

• OUT / S (Signal Pin): The active digital data output. Link this straight to any digital input pin on your processor or logic controller to detect low-to-high state transitions.

• VCC (+ Power): Direct-current power voltage supply input (Connects directly to your 5V controller power rail).

• GND (- Ground): Common system reference ground or negative power return terminal.

Common Applications

• Microcontroller Menu Navigation: Chain a series of button modules together to form localized control keys for navigating setups on LCD screens or stepping through variable device parameters.

• Manual Relay Control Triggers: Act as a clean external manual activation button to safely trigger or override individual channels on 5V industrial relay modules.

• Robotics Bumpers & Endstops: Install at the outer perimeter of mobile mechanical vehicles to serve as simple, responsive physical collision bumpers or travel limit switches.

• Educational Academic Circuit Design: An excellent, easily scannable teaching tool for introducing introductory coding students to digital pull-up/pull-down logic and debounce programming constraints.

Package Includes:

• 1 x Momentary Tactile Push Button Module DC 5V Switch
