Project Overview

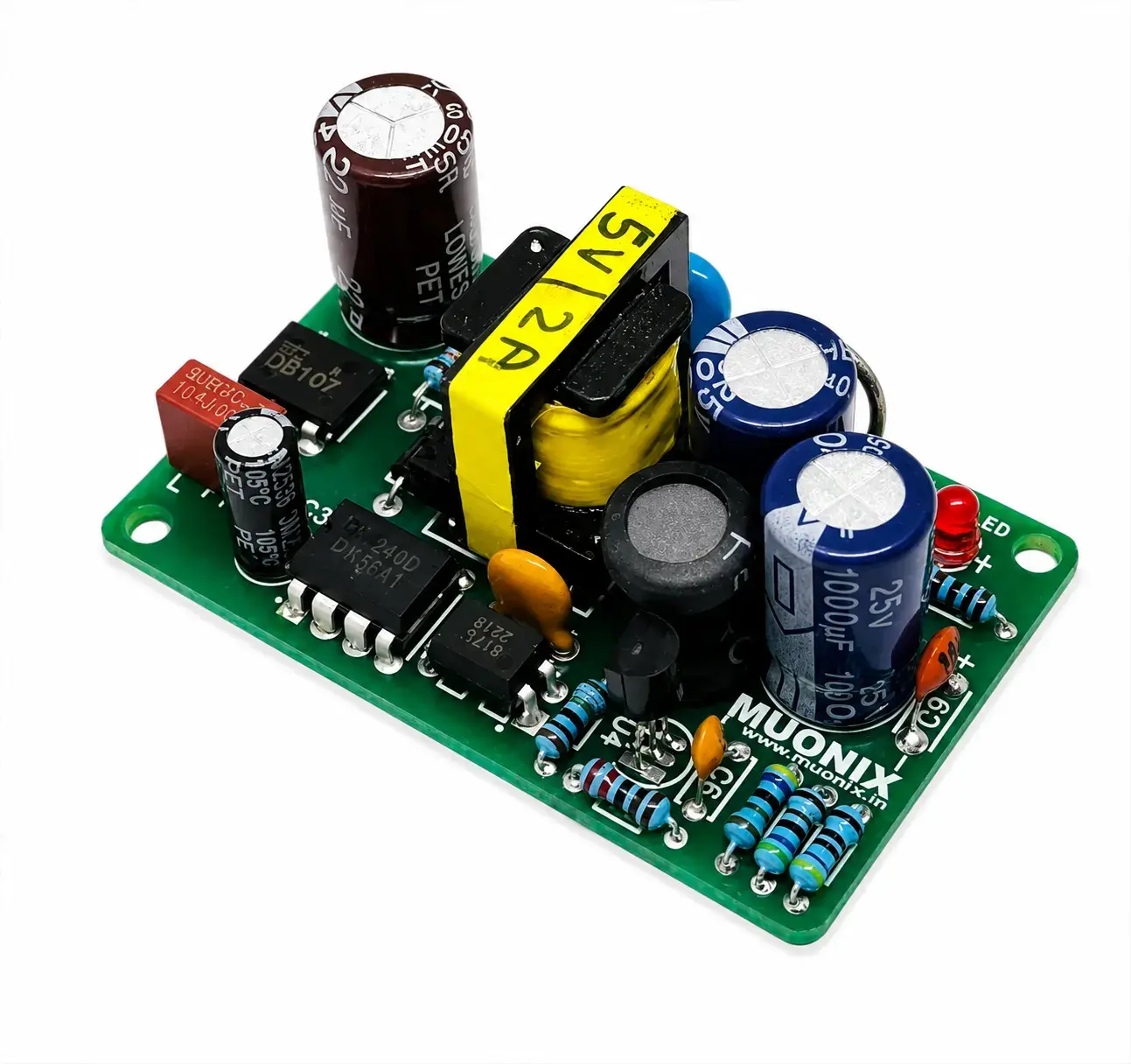

The 5V 2A Switch Mode Power Supply (SMPS) is a compact, high-efficiency AC-to-DC power converter designed to deliver a regulated 5V DC output at up to 2A from a universal AC input. Based on an isolated flyback topology, the power supply provides excellent electrical isolation, stable output regulation, and reliable performance. It incorporates comprehensive protection features, making it suitable for USB-powered devices, embedded systems, networking equipment, and various consumer and industrial electronics.
Key Features
Universal AC input: 85–265V AC, 50/60Hz
Stable 5V DC / 2A regulated output
Maximum output power of 10W
Isolated flyback converter design
High efficiency with low standby power consumption
Low output ripple and noise
Short-circuit protection (SCP)
Over-current protection (OCP)
Over-voltage protection (OVP)
Compact and lightweight design
Reliable continuous operation
Technical Specifications
Parameter | Specification |
Input Voltage | 85–265V AC, 50/60Hz |
Output Voltage | 5V DC ±5% |
Output Current | 2A (Max) |
Output Power | 10W |
Topology | Isolated Flyback SMPS |
Efficiency | Up to 85% |
Protection | OCP, OVP, SCP |
Operating Temperature | -20°C to +60°C |
Cooling | Natural Air Cooling |
PCB Type | FR-4 Double Layer |
Applications
USB Wall Chargers
Mobile Phone and Tablet Charging
Raspberry Pi and Single-Board Computers
Arduino, ESP32, and Other Development Boards
IoT Devices
Bluetooth and Wi-Fi Modules
USB Hubs and Peripherals
CCTV Cameras and Security Systems
LED Controllers
Consumer and Industrial Electronics
Package Includes
1 × 5V 2A SMPS Power Supply PCB
1 × Fully Assembled Electronic Circuit
