Specifications

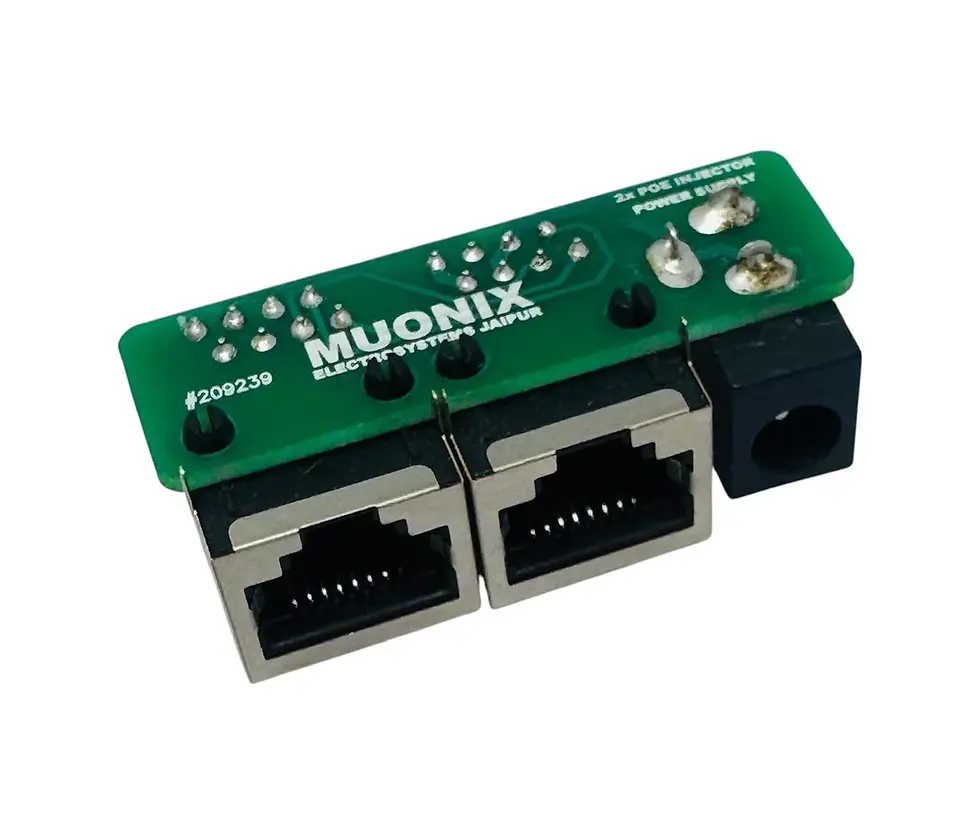

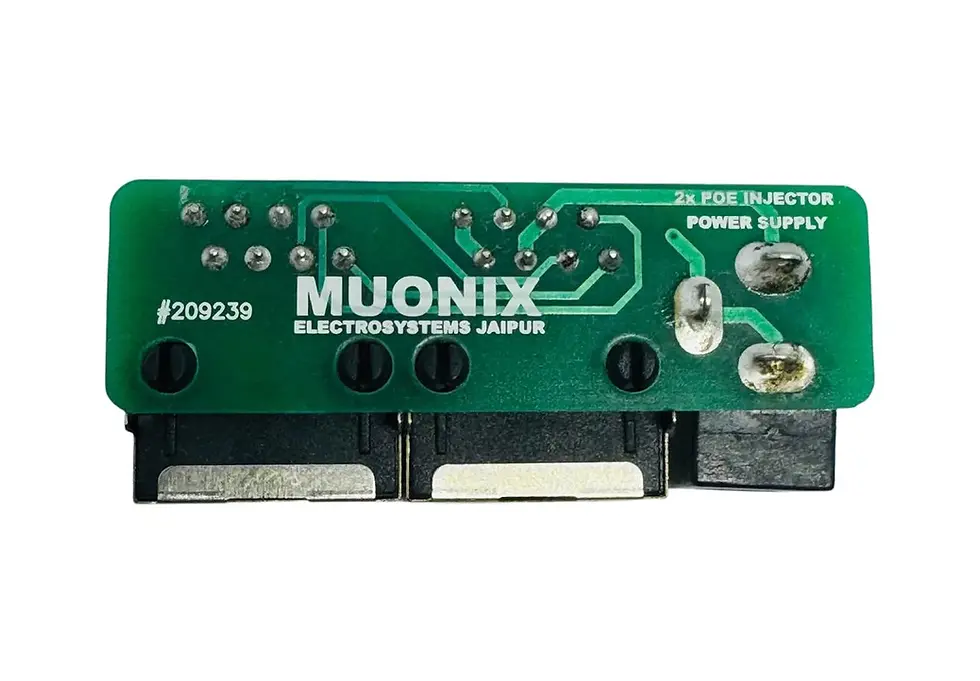

• 2-Port Passive PoE Injector Module – Injects DC power and Ethernet data onto a single network cable, simplifying cable management for compatible passive PoE devices.

• Dual RJ45 Ports – Features dedicated LAN (Data In) and PoE (Data + Power Out) RJ45 connectors for straightforward network integration.

• DC Barrel Power Input – Standard DC barrel jack for connecting an external DC power adapter. Supports a wide range of compatible DC input voltages depending on the connected device requirements.

• Passive Power over Ethernet Design – Combines Ethernet data and DC power onto a single Ethernet cable. No active PoE negotiation is performed.

• Supports 10/100 Mbps Ethernet – Designed for Fast Ethernet (10/100 Mbps) networks while maintaining reliable data transmission and power delivery.

• Compact and Durable PCB Construction – Space-saving design suitable for network cabinets, surveillance installations, embedded systems, and custom networking equipment.

• Easy Installation – Plug-and-play hardware requiring no software configuration for compatible passive PoE devices.

• Reliable Power Distribution – Provides stable DC power injection for compatible networking and embedded applications.

• Factory Assembled & Tested – Fully assembled and electrically tested to ensure dependable operation.

Applications

• IP Camera Installations

• Wireless Access Points

• Network Bridges

• VoIP Devices

• Embedded Ethernet Systems

• Industrial Networking

• IoT Gateways

• Custom Passive PoE Projects

• Network Testing & Development

• Remote Powered Ethernet Devices

Technical Specifications
