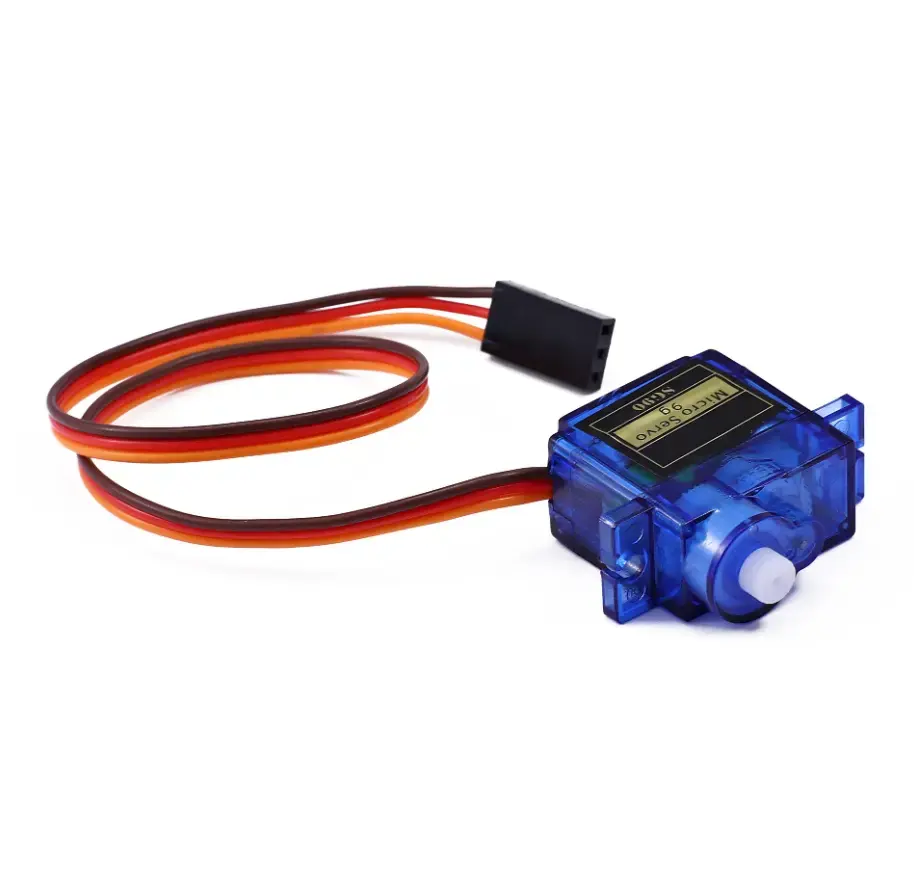

Tower Pro SG90 9g Mini Micro Servo Motor (Precision 180-Degree Proportional Robotic Actuator)

Introduce high-accuracy angular position tracking, rapid structural shifting, and clean mechanical actuation into your compact prototyping builds with the industry-standard Tower Pro SG90 9g Mini Micro Servo Motor. Weighing a mere 9 grams, this tiny, high-performance actuator combines a coreless direct-current motor, a high-reduction gear train, and a built-in feedback control circuit layout inside a singular, ultra-lightweight housing block.

Unlike standard direct-current motors that spin continuously without tracking their position, this micro servo acts on a closed-loop positioning matrix. By sending a standard hardware pulse train from your controller, you can command the output horn to pivot and lock tightly at any specific angle across a 180-degree sweep array. It serves as the definitive mechanical choice for multi-axis robotic arm claws, automated pan-tilt camera gimbals, micro-servo steering links on RC aircraft, and localized physical mechanism locks.

Key Features

• Precise 180-Degree Position Locks: Operates on a full half-circle angular sweep profile, allowing you to program exact position increments down to single degrees with high holding stability.

• All-In-One Closed-Loop Driver: Features an internally integrated feedback potentiometer and control microchip that tracks the shaft's real-time position automatically, correcting external deflection forces instantly.

• High Strength-to-Weight Core Ratio: Weighs just 9 grams while outputting surprising rotational twisting force, thanks to an optimized internal high-density gear matrix reduction layout.

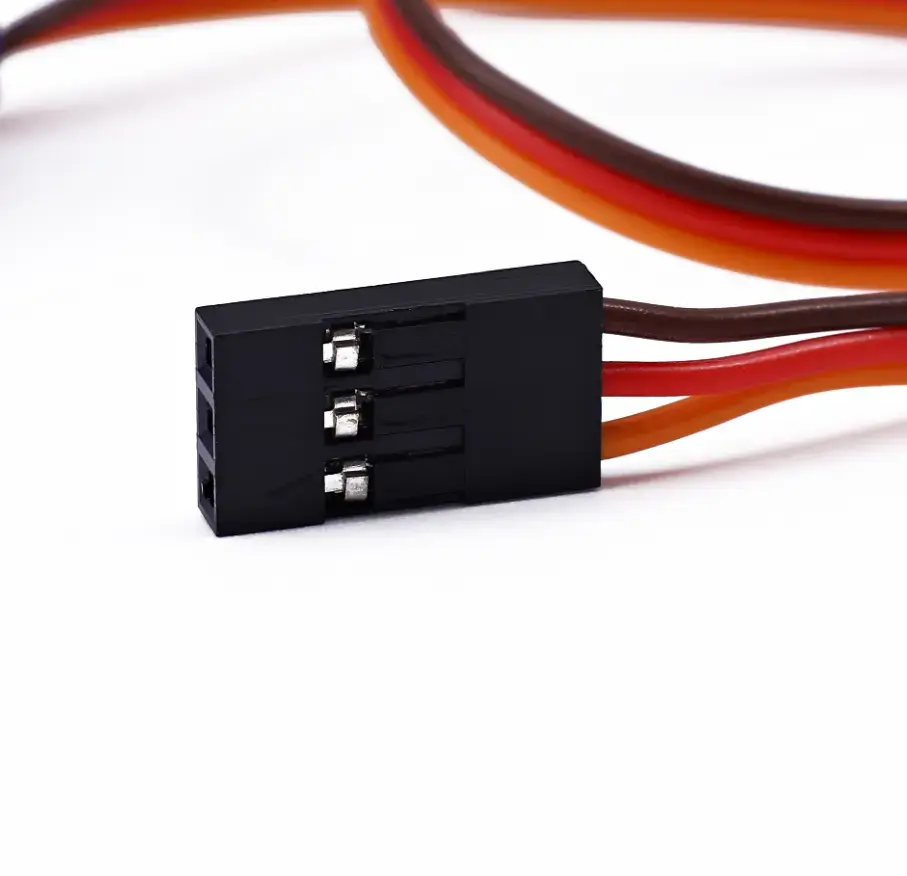

• Universal High-Flex Three-Wire Harness: Terminated with a standardized three-pin female connector block (Signal, Power, Ground) that drops straight onto standard microcontroller sensor shields.

• Full Accessory Arm Horn Hardware Kit: Bundled with a selection of modular plastic output horns (Single arm, double arm, and cross configurations) along with matching mechanical mounting screws.

• Seamless Customization Support: Built around an exceptionally versatile manufacturing template. If your unique commercial robotics assembly requires specialized wire loom lengths, custom metal horn outputs, or tailored mounting frames, we can easily customize the physical configuration to match your exact blueprint specifications.

Technical Specifications

Hardware Wiring & Signal Logic Blueprint

The high-flex three-wire ribbon cable features a universally standardized color layout to ensure quick, error-free integration into your processing core:

• Orange Wire (PWM Signal Input): Connect straight to a digital output pin on your microcontroller capable of generating hardware Pulse Width Modulation (PWM) signals. Sends the positional target commands.

• Red Wire (Positive VCC Power Link): Connect to a stable direct-current power source between 4.8V and 6.0V. (Highly recommended to route this from an external 5V rail to prevent current dips on your microcontroller).

• Brown Wire (Common Ground -): Connect straight to the common reference grounding rail or negative power return line of your overall circuit grid.

Position Command Protocol

To sweep the output shaft smoothly across its physical limits, feed a continuous 50 Hertz logic frequency train into the orange signal wire. Varying the pulse width length tells the internal feedback board exactly where to hold the motor horn:

• 1.0 Millisecond Pulse Width: Moves the servo horn completely to the far left position (0-degree base index line).

• 1.5 Millisecond Pulse Width: Automatically centers the servo horn perfectly mid-way (90-degree reference point).

• 2.0 Millisecond Pulse Width: Moves the servo horn completely to the far right position (180-degree endpoint line).

Common Applications

• Robotic Grippers & Mechanical Hands: Form the primary driving muscles inside multi-finger robotic hands or custom mechanical claw assemblies to grip objects firmly.

• Pan-Tilt Ultrasonic Scanning Gimbals: Mount an HC-SR04 ultrasonic sensor bracket onto the servo horn to sweep 180 degrees, allowing autonomous rovers to map room boundaries.

• RC Airplane & Rover Control Surfaces: Manage steering angles, wing ailerons, tail rudders, and mechanical steering column knuckles on miniature hobby models.

• Industrial Multi-Channel Test Triggers: Deploy inside automated evaluation benches to physically cycle or trip individual micro-switches to run diagnostic checks on heavy multi-channel relay modules.

Package Includes:

• 1 x Tower Pro SG90 9g Mini Micro Servo Motor (with Integrated 3-Wire Cable)

• 3 x Modular Plastic Servo Horn Attachments (Varying Output Profiles)

• 3 x Stainless Steel Mechanical Mounting Screws
