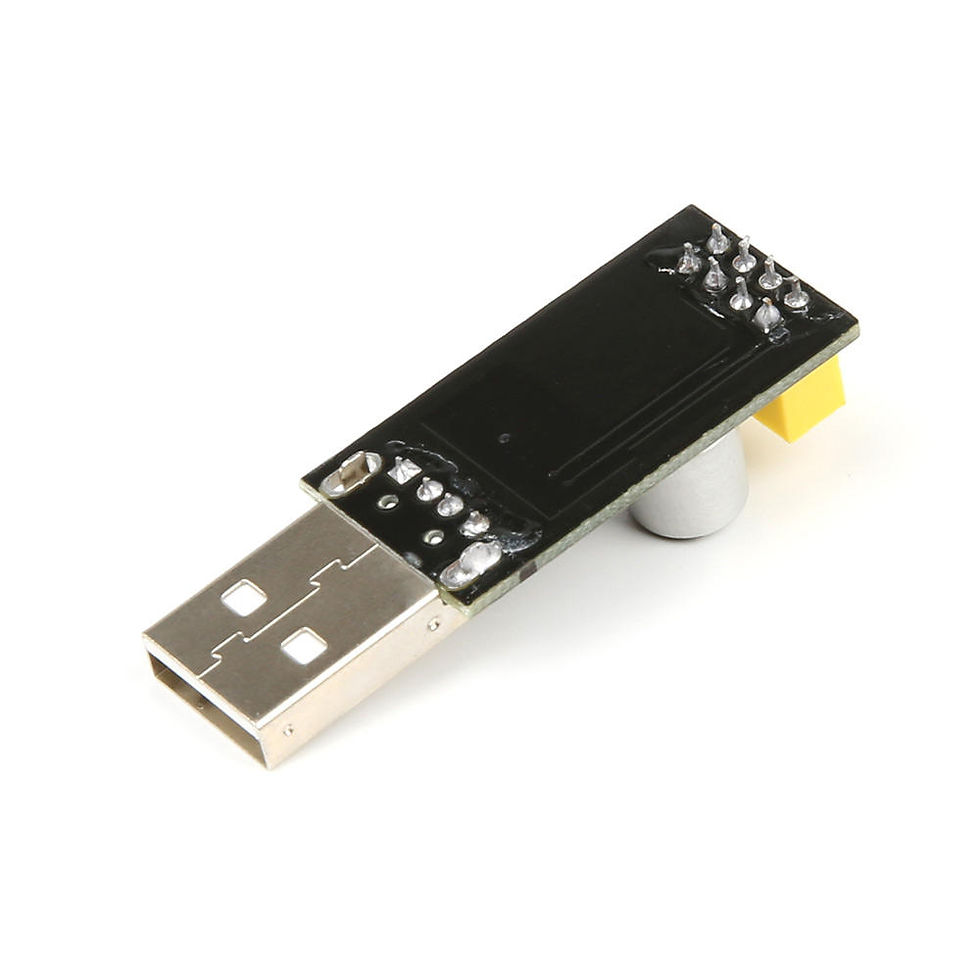

USB to UART / ESP8266 Adapter Programmer (CH340G Wireless Flasher Board)
Streamline your wireless development workflows and eliminate messy jumper wire connections with the industrial-grade USB to UART / ESP8266 Adapter Programmer. Specifically engineered to interface directly with the popular ESP-01 and ESP-01S Wi-Fi modules, this high-performance USB bridge board eliminates the frustration of manual breadboard programming by providing a dedicated, plug-and-play flashing socket.
Driven by the globally trusted CH340G USB-to-Serial transceiver integrated circuit, this adapter converts your computer's USB signals into clean Universal Asynchronous Receiver-Transmitter serial data. It features an onboard female header designed to receive an ESP-01 module instantly, making it the definitive hardware choice for uploading custom firmware, executing AT commands, debugging wireless automation setups, and deploying smart internet-of-things firmware.
Key Features
Dedicated ESP-01 Socket Design: Features a custom-routed 2x4 pin female header on the top of the board, allowing you to slide an ESP-01 or ESP-01S Wi-Fi module straight into place without using messy breadboard wires.
High-Stability CH340G Serial Engine: Powered by the industry-standard CH340G USB-to-UART chip, ensuring stable, high-speed data transmission rates and plug-and-play driver support across modern operating systems.
Integrated Hardware Protection Filters: Assembled with high-capacity onboard filtering capacitors that absorb sudden voltage ripples and stabilize the electrical environment, preventing firmware corruptions during long code uploads.
Onboard Operating Mode Control: Optimized for fast engineering workflows, allowing you to easily cycle the module between standard serial debugging mode and low-level firmware flashing mode using onboard configuration pads or micro-switches.
Direct USB Power Rail: Draws its operational power straight from your computer's standard USB port, outputting a stabilized supply grid to safely energize the connected wireless module without stressing its onboard components.
Compact Flash-Drive Layout: Designed with a sleek, space-saving layout that inserts directly into any desktop or laptop port, making it highly portable for field diagnostics and crowded laboratory benches.
Technical Specifications
Feature | Specification |
Core Serial Transceiver | High-Stability CH340G USB-to-UART IC |
Target Hardware Support | ESP-01 and ESP-01S Wi-Fi Modules |
Interface Input Port | Standard USB Type-A Male Interface |
Output Communication Standard | TTL Level UART Serial (TX / RX Channels) |
Logic Voltage Configuration | Safe 3.3V logic levels optimized for wireless microchips |
Baud Rate Support Range | 2400 bps up to 115200 bps (and higher for rapid flashing) |
Operating System Support | Windows 7 / 8 / 10 / 11, Linux, and macOS |
Board Dimensions | 48 mm x 17 mm x 14 mm |
Hardware Wiring & Interface Mapping
The module operates as a standalone USB dongle, breaking out a dedicated interface mapping layout optimized specifically for the ESP wireless framework:
USB Plug: Connects straight into a standard computer USB port to initialize communication and pull system power.
2x4 Pin Female Header: Accurately routes primary power, ground, serial transmit, serial receive, and control pins (like CH_PD and GPIO0) to the target Wi-Fi chip.
3.3V Logic Rail Protection: The board ensures that all TX and RX lines communicate strictly using safe 3.3V digital levels, preventing over-voltage stress on the highly sensitive ESP processor.
Common Applications
ESP-01 Firmware Flashing: Easily upload custom firmware builds, NodeMCU scripts, MicroPython routines, or Arduino code structures onto your miniature Wi-Fi modules.
Wireless Serial AT Diagnostics: Connect directly through a computer serial monitor to execute manual AT commands, modify wireless network credentials, and test connection baselines.
USB to UART General Prototyping: Can be utilized by advanced developers as a standard USB-to-TTL serial converter to communicate with other external microcontrollers over jumper lines.
Smart Home Automation Deployments: A fundamental hardware asset for flashing remote smart switches, automated temperature nodes, and localized wireless relay controls.
💡 Pro-Engineering Firmware Flashing Tip: The standard ESP-01 module requires its GPIO0 pin to be pulled LOW to ground during boot-up to enter its internal firmware download mode. If your adapter variant does not feature a built-in flashing toggle switch, simply bridge the GPIO0 pad to the GND pad momentarily using a small jumper or conductive tool while plugging the adapter into your USB port. Once inside flash mode, you can upload your custom code seamlessly from your IDE.
Package Includes:
1 x USB to UART / ESP8266 Adapter Programmer Module (CH340G Board)
