Product Overview

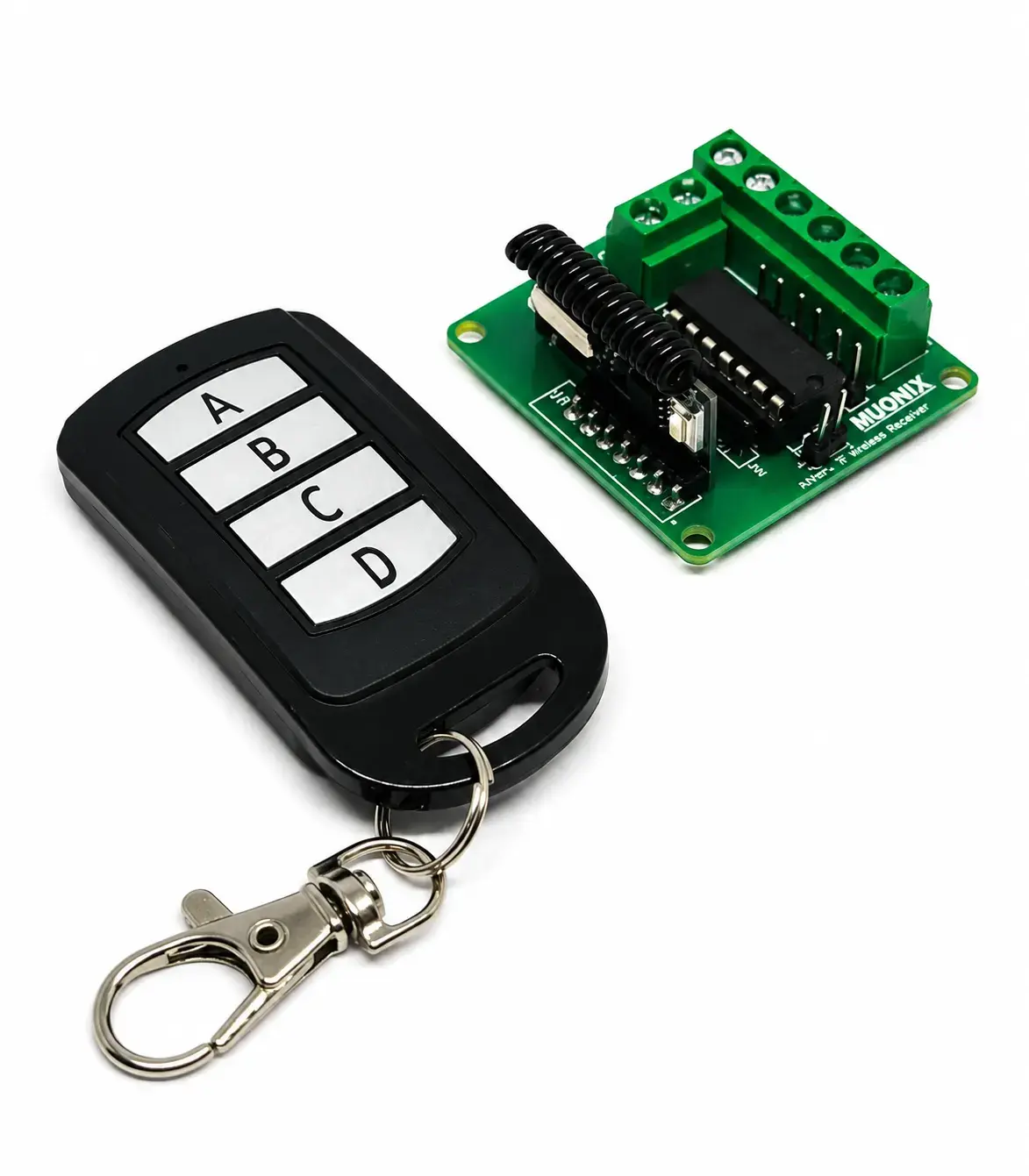

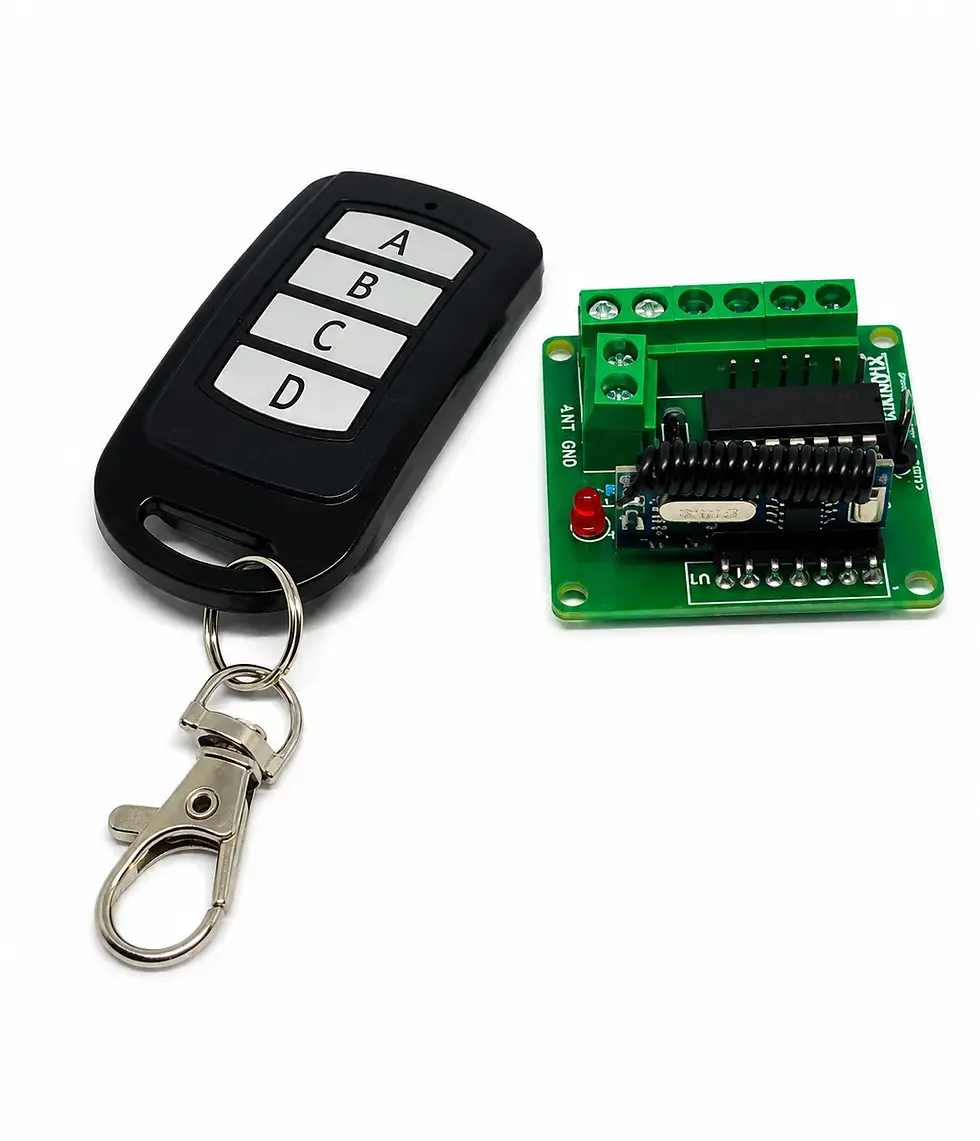

The Muonix RF 433MHz Receiver  Module with an transmitter Remote( The Remote is compatible with 1 - 4 Channel) is a compact wireless communication module designed for short-range RF data transmission. Operating at 433.92MHz, it includes a transmitter and receiver module for reliable wireless communication between microcontrollers and electronic devices. It is ideal for Arduino, Raspberry Pi, IoT, home automation, and remote control applications.

Key Features

• Operates at 433.92MHz RF frequency.

• It has a transmitter  Remote with receiver modules.

• Supports ASK/OOK modulation.

• Receiver offers high sensitivity for reliable communication.

• Wireless transmission range up to 200 meters (depending on conditions).

• Low power consumption for battery-powered projects.

• Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and other micro-controllers.

• Supports external antennas for improved signal range.

• Compatible with 1 to 4 channel

Technical Specifications

• Product Type: 433MHz RF Receiver & Transmitter Module Kit

• Operating Frequency: 433.92MHz

• Modulation: ASK/OOK

• Receiver Voltage: 5V DC

• Transmitter Voltage: 3.3V - 5V DC

• Receiver Sensitivity: -108 dBm

• Maximum Data Rate: Up to 10 kbps (Receiver), 20 kbps (Transmitter)

• Transmission Range: Up to 200 m (open area)

• Antenna Support: External 433MHz antenna

• Operating Temperature: -40°C to +85°C

• Package Contents: 1 × RF Transmitter Module, 1 × RF Receiver Module, 2 × Antennas




Applications

• Wireless remote control systems.

• Arduino and Raspberry Pi projects.

• Home automation and IoT devices.

• Wireless sensor networks.

• Security and alarm systems.

• Robotics and automation projects.

• Wireless data communication between microcontrollers.
